ASUS

PN:90MB1BI0-M0EAY0

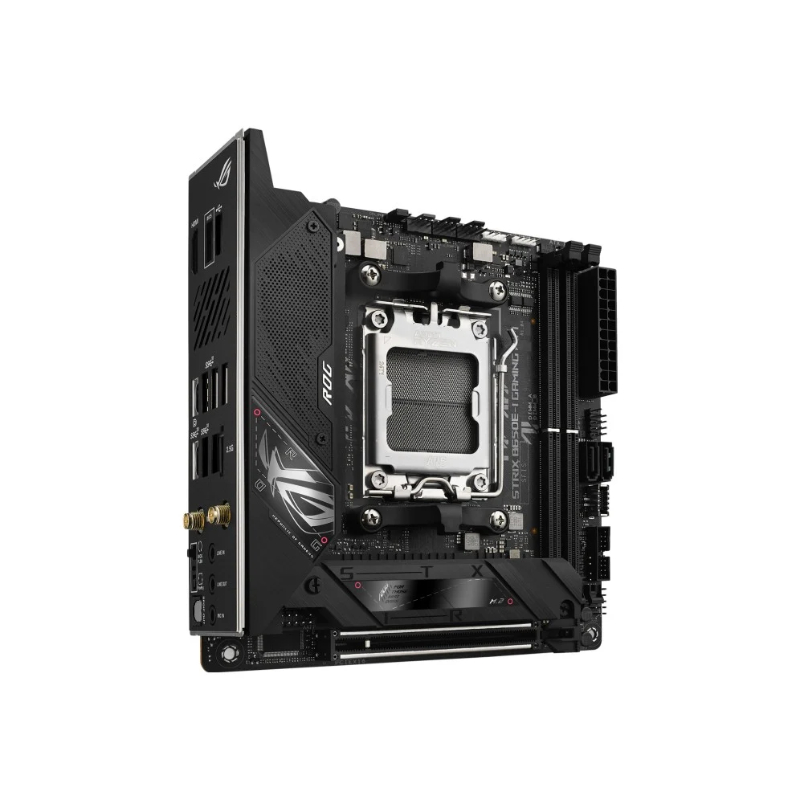

PLACA BASE ROG STRIX B650E-I GAMING WIFI ASUS

Socket AM5/ AMD B650/ DDR5/ HDMI, DP, USB-C, RJ45/ MicroATX

394,99€ PVP

Comprar

Consultar

● Chipset: AMD B650

ASUS

PN:90MB1BI0-M0EAY0

PLACA BASE ROG STRIX B650E-I GAMING WIFI ASUS

Socket AM5/ AMD B650/ DDR5/ HDMI, DP, USB-C, RJ45/ MicroATX

394,99€ PVP

Comprar

Consultar

●Chipset: AMD B650

CPU:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset
AMD B650

Memoria:
Cantidad de Slots: 2 x DIMM
Máxima Capacidad: Max. 96GB
Tipo: DDR5
Velocidades Soportadas (OC): 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC) MHz
Velocidades Soportadas (Nativas): 5200/5000/4800 MHz
Arquitectura de Memoria: Dual Channel
Soporte: AMD EXTended Profiles for Overclocking (EXPO™)
Características: OptiMem II
Nota: Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Nota: Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Gráficos:
1 x HDMI® port***
1 x USB3.2 Gen2 port supports USB Type-C® display outputs****
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@60Hz as specified in display outputs
Supports 4K@60Hz as specified in HDMI 2.1.

Almacenamiento:
Total: Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.

Red:
Ethernet: 1 x Intel® 2.5Gb Ethernet
LAN Features: ASUS LANGuard
Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
WiFi 6E 6GHz
Bluetooth®: v5.2**

USB:
Rear USB (Total 8 ports):
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports):
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio:
Codec: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-Bit/384 kHz playback
Audio Features:
Audio Shielding
Savitech SV3H712 AMP
LED-illuminated audio jacks

Conexiones
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
3 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x FlexKey button
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
1 x USB 3.2 Gen 2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers supports additional 2 USB 2.0 ports

Las especificaciones e imágenes están sujetas a cambios sin previo aviso. Todas las marcas y logotipos son propiedad de sus respectivos fabricantes. La foto puede mostrar otros productos que se venden por separado.
